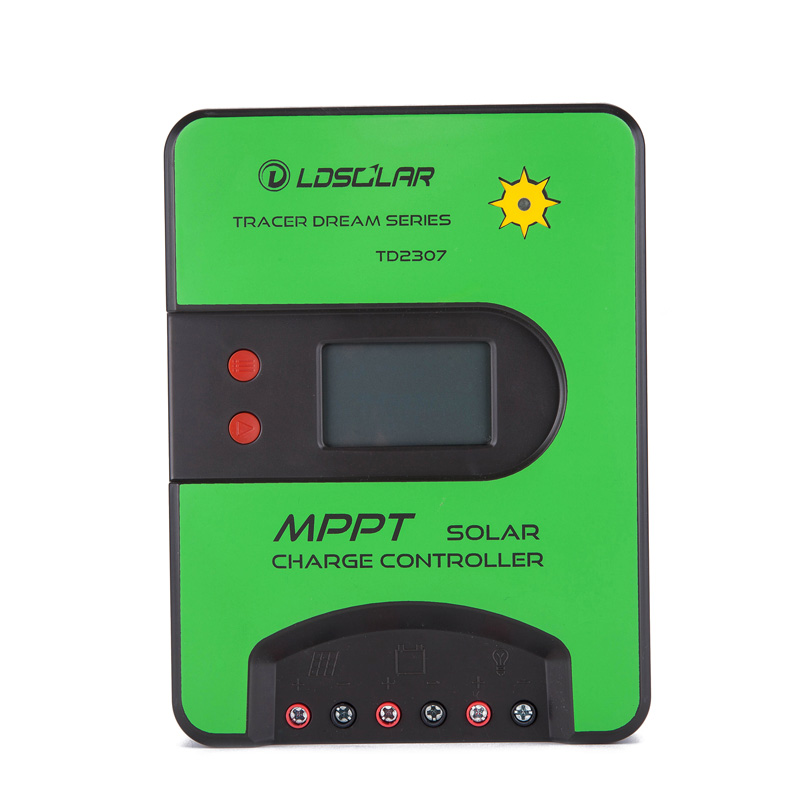

TD Series（10A 15A 20A 30A 40A ）MPPT Solar Controller
Tracer Dream Series adopts MPPT technology. It's also ran by 32 bits CPU,so stability and speed can be guaranteed. So our MPPT can trace the accurate Pmax in the shortest time (10~20s),even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight.
Product Information
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

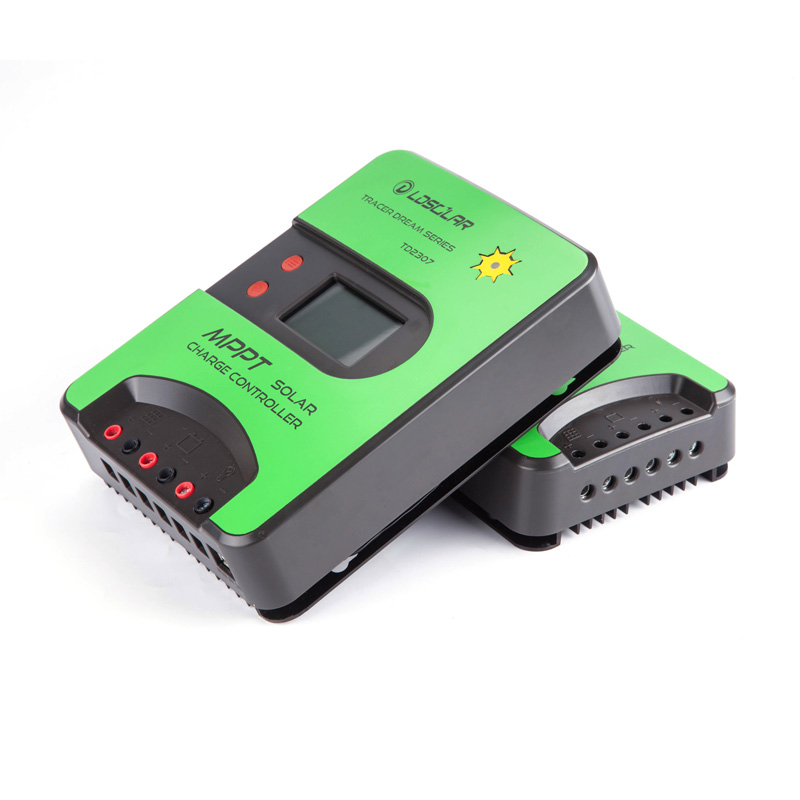

Product Details
|
01 |
02 | 03 | ||
| Free USB Charging | Distinctive heat dissipation character | Large-diameter red and black terminals | ||

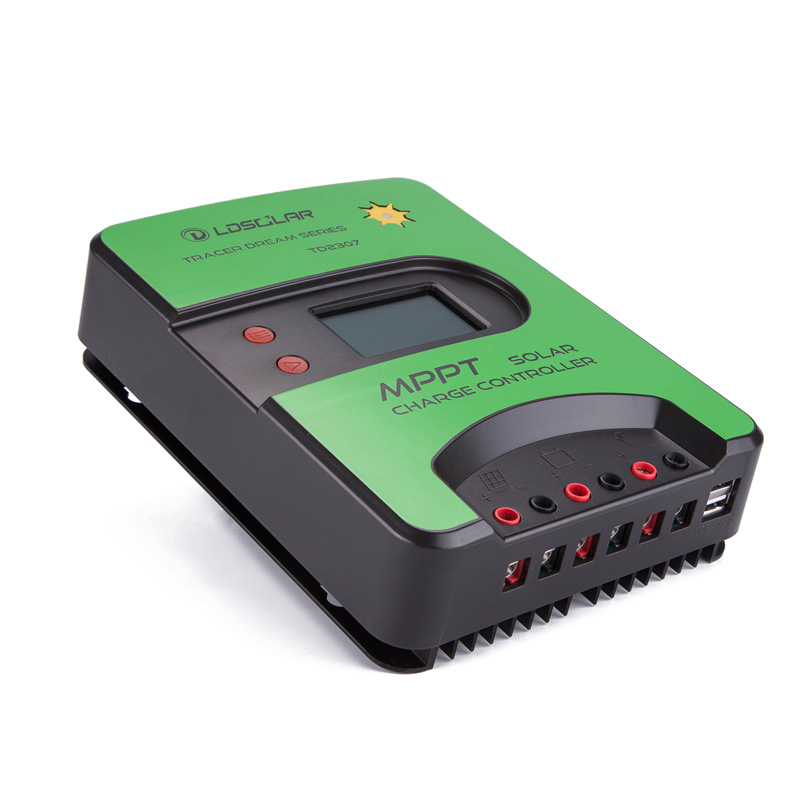

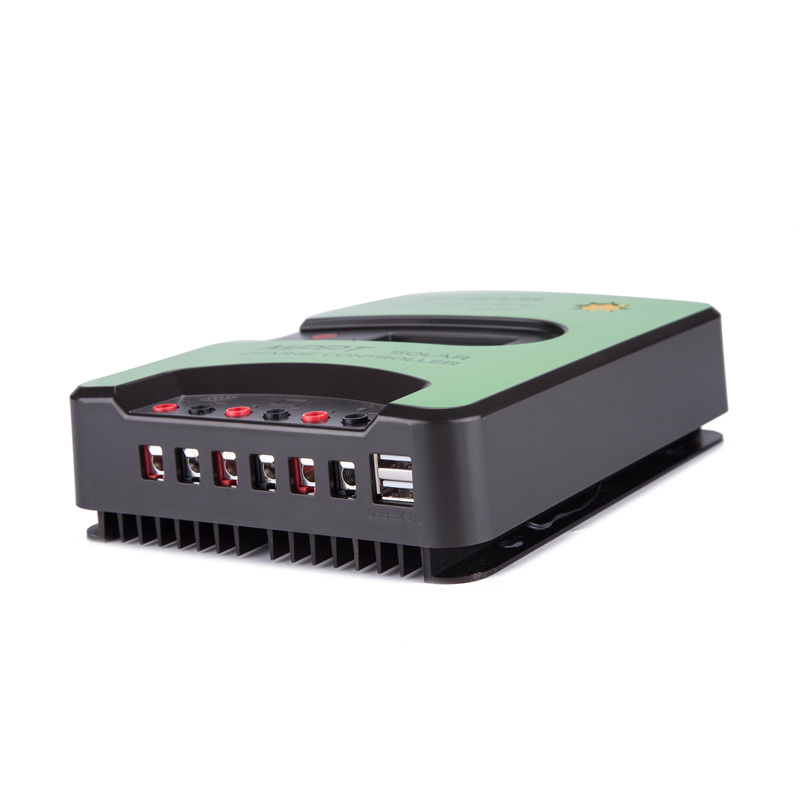

| The maximum 2.4A charging current charges your mobile device faster USB*2PCS |

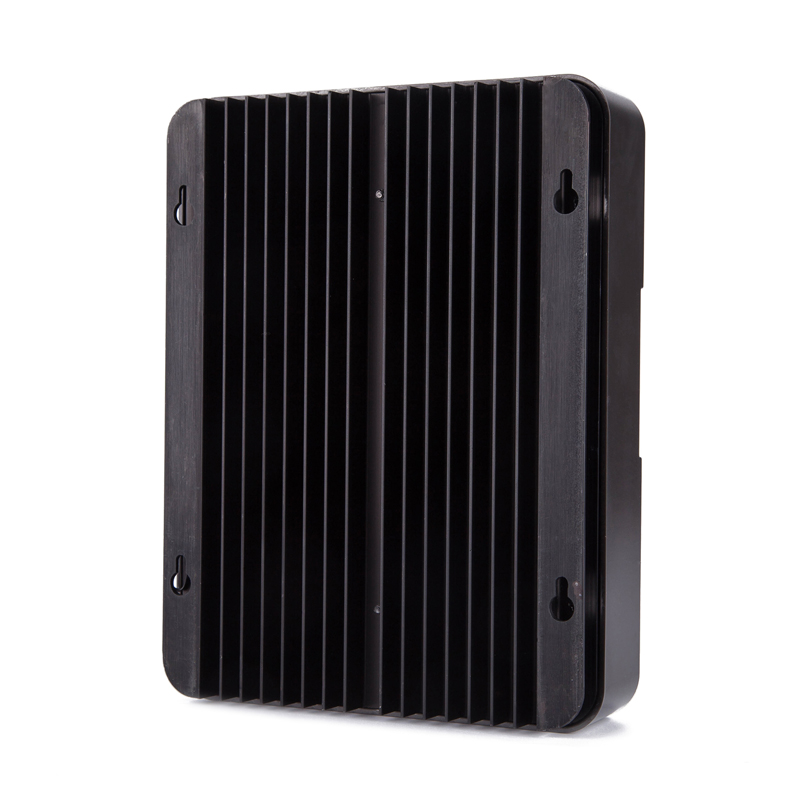

The back MOS tubes are evenly distributed.While ensuring a stylish and simple appearance,the heat dissipationis further improved. |
The red and black design allows customers to distinguish positive and negative more intuitively, and good customer experience |
Product Highlights
|
|
|
 |
 |
|
| MPPT |
Max.60V/75V/100V Solar Input |

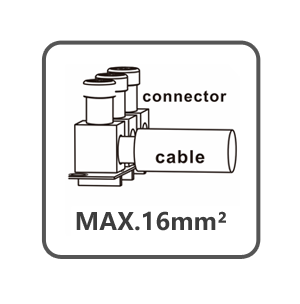

12V/24V Auto | Efficiency up to 98% | Max.16mm² |
 |
 |
 |
 |
 |
| Multiple load work modes | Charging and Discharging | Air cooling | Start from Solar | Support Lithuium Battery |
 |
 |
 |
 |
 |
| Built-in Bluetooth(optional) | Built-in WiFi(optional) | USB | Adjustable parameters | 16 Safety Protections |
Product Parameters
| Item | TD2106 | TD2107 | TD2207 | TD2310 | TD2410 | TD2610 |
|---|---|---|---|---|---|---|
| System nominal voltage | 12/24VDC Auto ① | |||||
| Rated charge current | 10A | 15A | 20A | 30A | 40A | 60A |
| Rated discharge current | 10A | 15A | 20A | 30A | 40A | 60A |
| Battery voltage range | 8～32V | |||||
| Max. PV open circuit voltage |
② 60V ③ 55V |
② 75V ③ 70V |
② 100V ③ 95V |
|||
| MPP voltage range | (Battery voltage +2V)～ 65V | |||||
| Battery Type | Sealed(Default)/Gel/Flooded/LiFePO4/ Li(NiCoMn)O2/ User | |||||
| Rated charge power |
130W/12V 260W/24V |
190W/12V 380W/24V |
260W/12V 520W/24V |
390W/12V 780W/24V |
520W/12V 1040W/24V |
780W/12V 1560W/24V |
| LVD | 11.0V ADJ 9V….12V；×2/24V； | |||||
| LVR | 12.6V ADJ 11V….13.5V；×2/24V； | |||||
| Float voltage | 13.8V ADJ 13V….15V；×2/24V； | |||||
| Boost voltage |
14.4V ；ADJ14V….17V； ×2/24； Battery Voltage less than Boost Restart Voltage Start Boost changing for 2hours |
|||||
| Self-consumption | ≤28mA(12V) ≤19mA(24V) | |||||
| Discharge circuit voltage drop | ≤0.12V | |||||
|
Temperature compensate Coefficient ④ |
-4mv/℃/2V | |||||
| Working environment temperature◆ | -20℃～+50℃(100% input and output) | |||||
| Storage temperature range | -20℃～+70℃ | |||||
| Relative humidity | ≤95%, N.C. | |||||
| Enclosure | IP32 | |||||
- ①When a lithium battery is used, the system voltage can’t be identified automatically.
- ②At minimum operating environment temperature
- ③At 25℃ environment temperature
- ④When a lithium battery is used, the temperature compensate coefficient will be 0.
- ◆The controller can work under full load in the working environment temperature, When the internal temperature is more than 80℃, the reducing power charging mode is turned on.
Product Connection
*Please be sure to follow the wiring instructions as incorrect wiring may damage the controller.
Product Video
