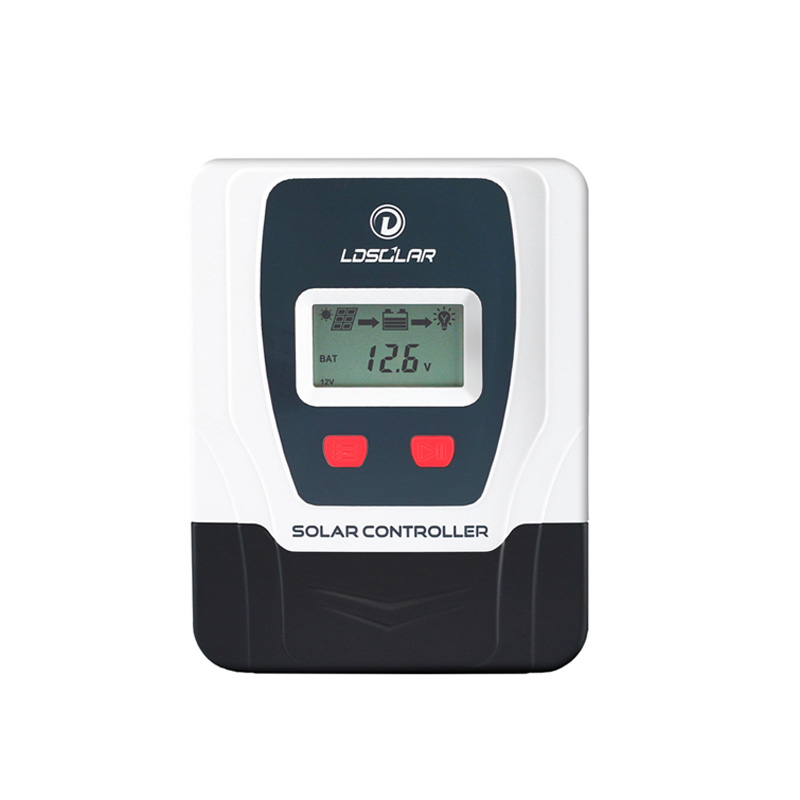

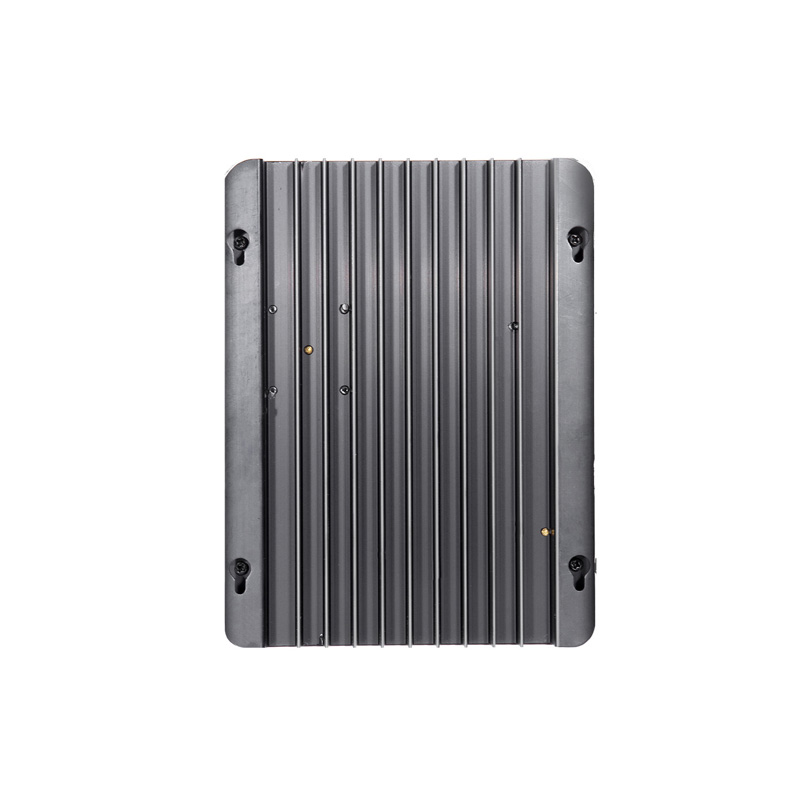

OD Series（10A~60A）PWM Solar Controller

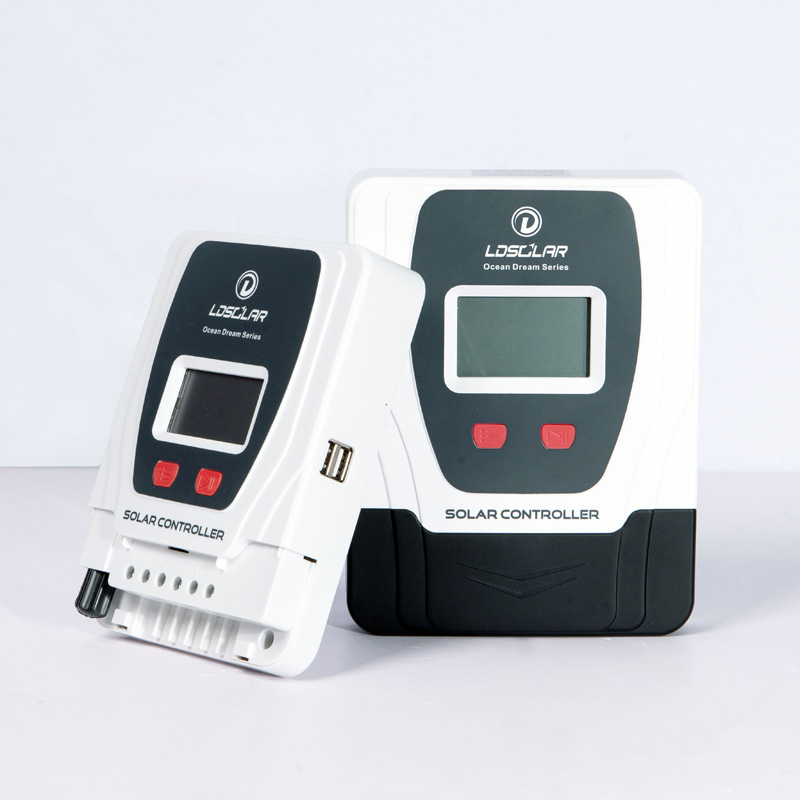

Ocean Dream Series (0D in short) is our newest designed Pwm solar controllers. its specialty lies in the inner 32 bits CPU,whichenables the controllers to work faster and more stable. t built 4USB port and a screw driver inside.Besides,our unigue black&Redbig terminals design facilitate your connection in real application. The white frosted plastic shellis very natural no matter where it isplaced in your home or RV.
Product Information
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Details
|
01 |
02 | 03 | ||

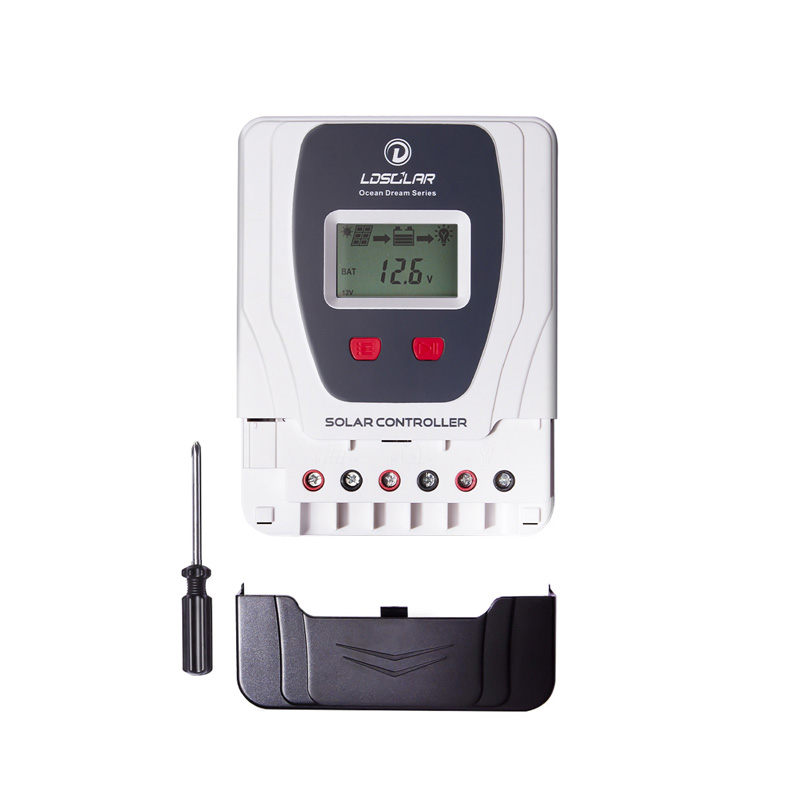

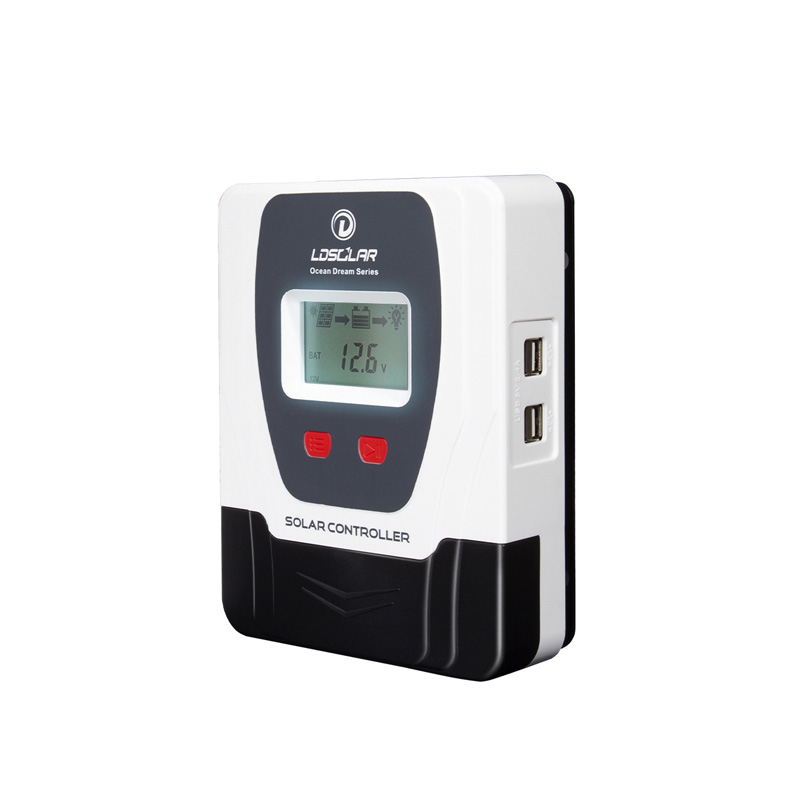

| Free USB Charging | Built-in screwdriver | Large-diameter red and black terminals | ||
| Support high current mode, the maximum 2.4A charging current charges your mobile device faster | All of OD series are built-in screwdriver. Worry-free use, it is there whenever you need it. | The red and black design allows customers to distinguish positive and negative more intuitively, and good customer experience |
Product Highlights
|
|
|
 |
|
|
| PWM |
Adjustable parameters |
12 Safety Protections | Charging and Discharging | USB |
 |
 |
 |
 |
|
| ARM 32bit | 12V/24V or 12V/24V/48V | Support Lithuium Battery | Screwdriver | Support Lithuium Battery |
Product Parameters
| Model | OD24**S | OD48**S | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| System Voltage | 12V/24V DC auto | 24V/48V DC | |||||||||
| PV Max Input Voltage | 55V | 100V | |||||||||
| Self-consumption | <10mA | ||||||||||
| Max Charging current | 10A | 20A | 30A | 30A | 40A | 50A | 60A | 30A | 40A | 50A | 60A |
| Max Discharging current | 10A | 20A | 20A | 30A | 40A | 50A | 60A | 30A | 40A | 50A | 60A |
| Battery type | Sealed(Default)/Gel/Flood/Lithium | ||||||||||
| LVD※* | 11.0V ADJ 9V...12V ; x2/24V ; x4/48V | ||||||||||
| LVR※* | 12.6V ADJ 11V...13.5V ； x2/24V ; x4/48V | ||||||||||
| Float Voltage※* | 13.8V ADJ 13V... 15V ; x2/24V ; M/48V | ||||||||||
| Boost Voltage※* | 14.4V ADJ 13V...17V ； x2/24 ; x4/48V battery voltage less than 12.6v auto boost 2hours | ||||||||||
| Battery Over Voltage ※* | 16.5V ; x2/24V ; x4/48V | ||||||||||
| Reverse Connection Protection | Yes | ||||||||||
| Load Over Current Protection | Yes, each 30s auto restart again | ||||||||||
| Controller Over Temperature | Yes | ||||||||||
| USB Output |
5VDC/2.4A 2 PCS |
5VDC/2.4A 4 PCS |
|||||||||
| Charging Type | PWM | ||||||||||
| Charge circuit voltage drop | ≤0.25V | ||||||||||
| Discharge circuit voltage drop | ≤0.1V | ||||||||||
| Temperature Consumption# | For 12Vsystem:-24mV /°C ; x2/24V ; x4/48V | ||||||||||
| Relative humidity | ≤95%, N.C. | ||||||||||
| WorkingTemperature | -20°C~+55°C℃(Product can work continuously at full load) | ||||||||||
| LCD temperature range | -20°C~+70°C | ||||||||||
| Waterproof grade | IP32 | ||||||||||
- #when bettery type is setted to Lithium battery,Temperature consumption is 0,unchangeable.
- ※Above the parameters are in 12V system at 25℃, twice in 24V system and quadruple in 48V system
- *The default value is set based on the lead-acid battery. For other battery type, please refer to the manual
Product Connection
*Please be sure to follow the wiring instructions as incorrect wiring may damage the controller.
