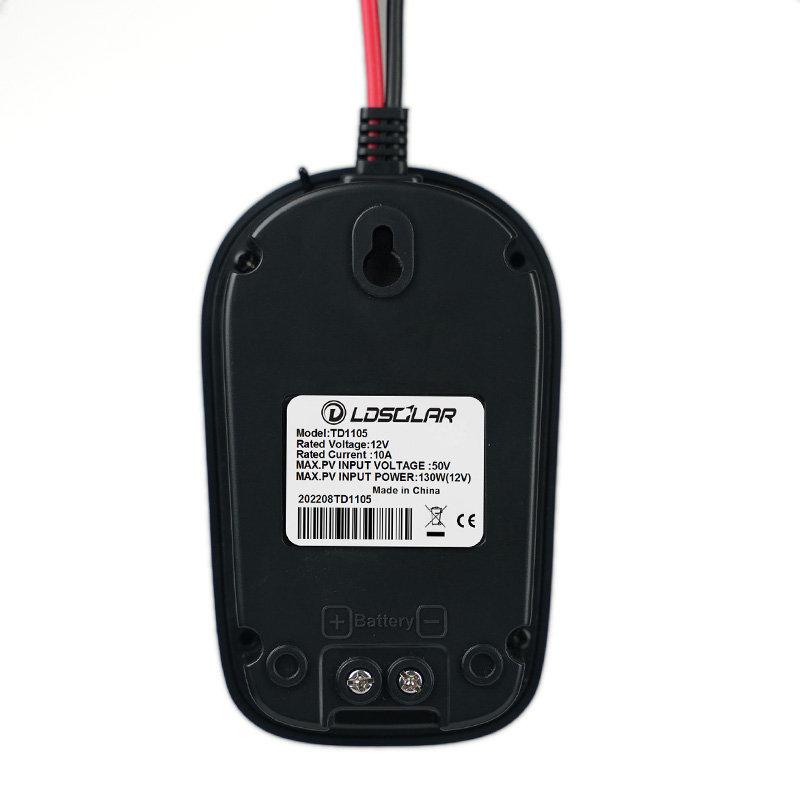

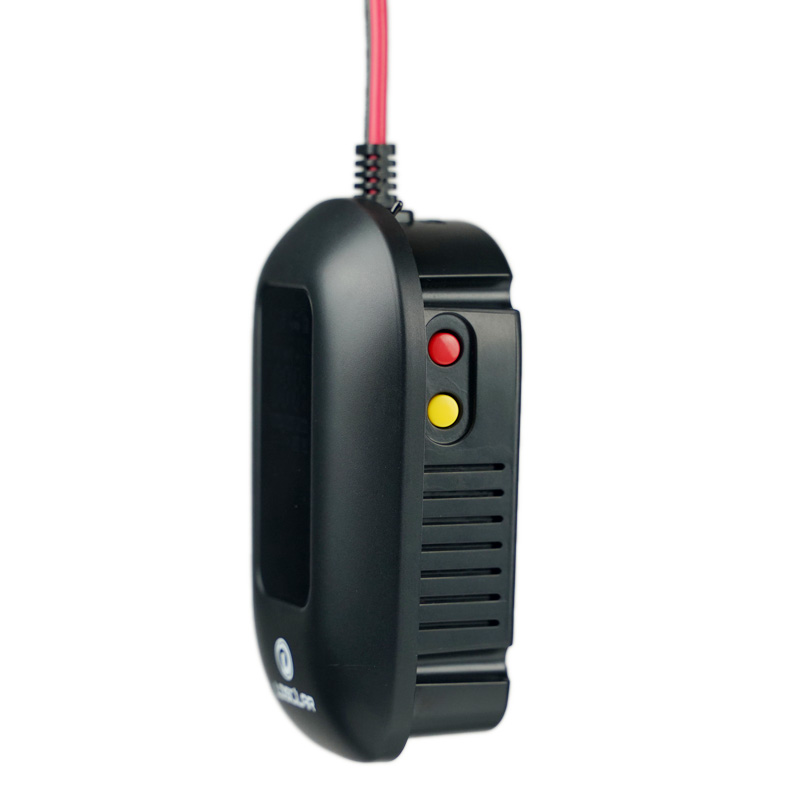

TD50V Series (10A) MPPT Solar Controller
Tracer Dream 50V series controller is based on advanced MPPT control algorithm, with LCD displaying running status. The newly designed screen adds the display of battery type and Bluetooth/WiFi,easy for customer to check.
Product Information
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Details
|
01 |
02 | 03 | ||
| LED Indicator | LED Display | Convenient Connection | ||
| Scroll the strip indicator light to show the various working states of the controller more intuitively
|

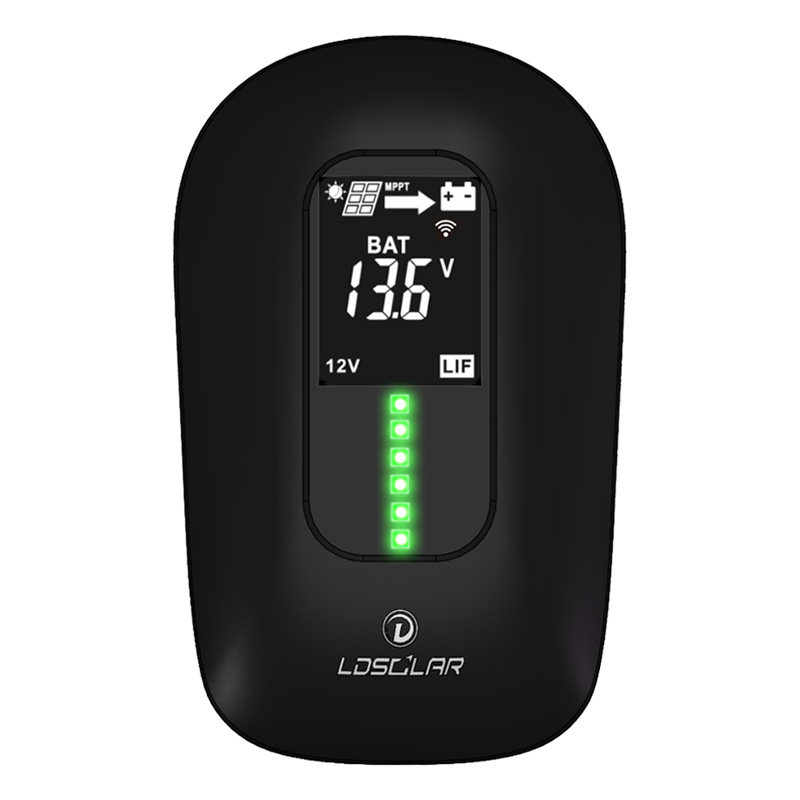

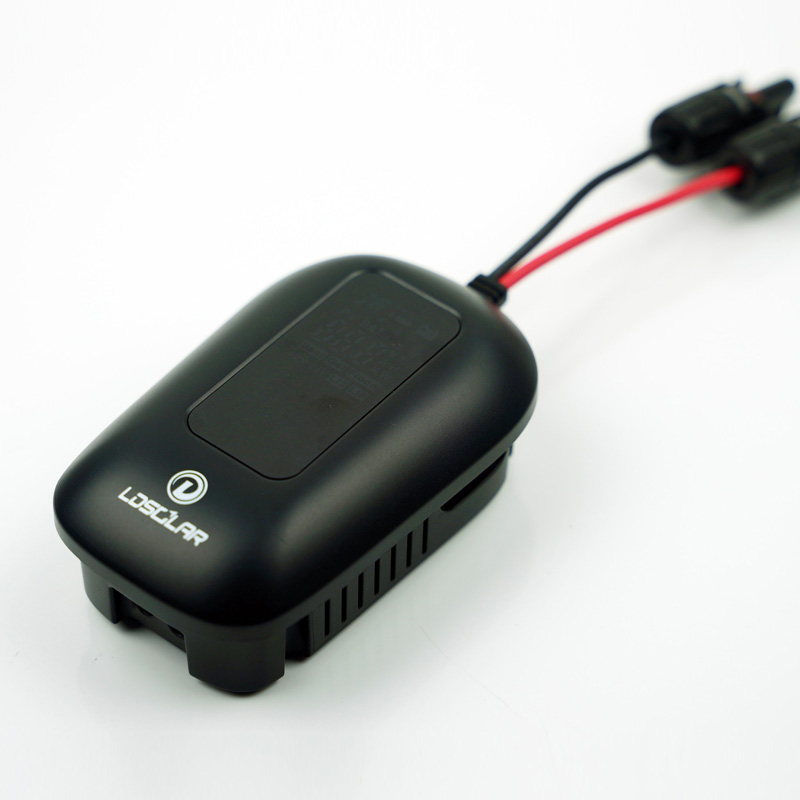

Upgrade to LED Black Screen Add WIFI/Bluetooth display and battery type display | TD1105 controller has its own MC4 interface, which can be directly connected to the solar panel |
Product Highlights
 |
|
|
|
|
| PWM |
Adjustable parameters |
14 Safety Protections | Charging | MC4 |
 |
 |
 |
 |
 |
| ARM 32bit | 12V or 12V/24V | Support Lithuium Battery | Free App Service | Common Negative |
 |
 |
 |
 |
 |
| Start from Solar | Air cooling |
Black LED With Back light |
Built-in Bluetooth(optional) |
Built-in wifi(optional) |
Product Parameters
| Item | TD1105 | TD2105 |
|---|---|---|
| System nominal voltage | 12V DC | 12/24VDC Auto ① |
| Rated charge current | 10A | 10A |
| Battery voltage range | 8～32V | |
| Max. PV open circuit voltage | ② 50V ③ 48V | |
| MPP voltage range | (Battery voltage +1V)～ 45V | |
| Battery Type | Sealed(Default)/Gel/Flooded/LiFePO4/ Li(NiCoMn)O2/ User | |
| Rated charge power | 130W/12V | 130W/12V 260W/24V |
| LVD | 11.0V ADJ 9V….12V；×2/24V； | |
| LVR | 12.6V ADJ 11V….13.5V；×2/24V； | |
| Float voltage | 13.8V ADJ 13V….15V；×2/24V； | |
| Boost voltage | 14.4V ；ADJ14V….17V； ×2/24； Battery Voltage less than Boost Restart Voltage Start Boost changing for 2hours |
|
| Self-consumption | ≤28mA(12V) ≤19mA(24V) | |
| Discharge circuit voltage drop | ≤0.12V | |
| Temperature compensate Coefficient ④ | -4mv/℃/2V | |
| Working environment temperature◆ | -20℃～+50℃(100% input and output) | |
| Storage temperature range | -20℃～+70℃ | |
| Relative humidity | ≤95%, N.C. | |
| Enclosure | IP32 | |
- ①When a lithium battery is used, the system voltage can’t be identified automatically.
- ②At minimum operating environment temperature
- ③At 25℃ environment temperature
- ④When a lithium battery is used, the temperature compensate coefficient will be 0.
- ◆The controller can work under full load in the working environment temperature, When the internal temperature is more than 80℃, the reducing power charging mode is turned on.
Product Connection
*Please be sure to follow the wiring instructions as incorrect wiring may damage the controller.
