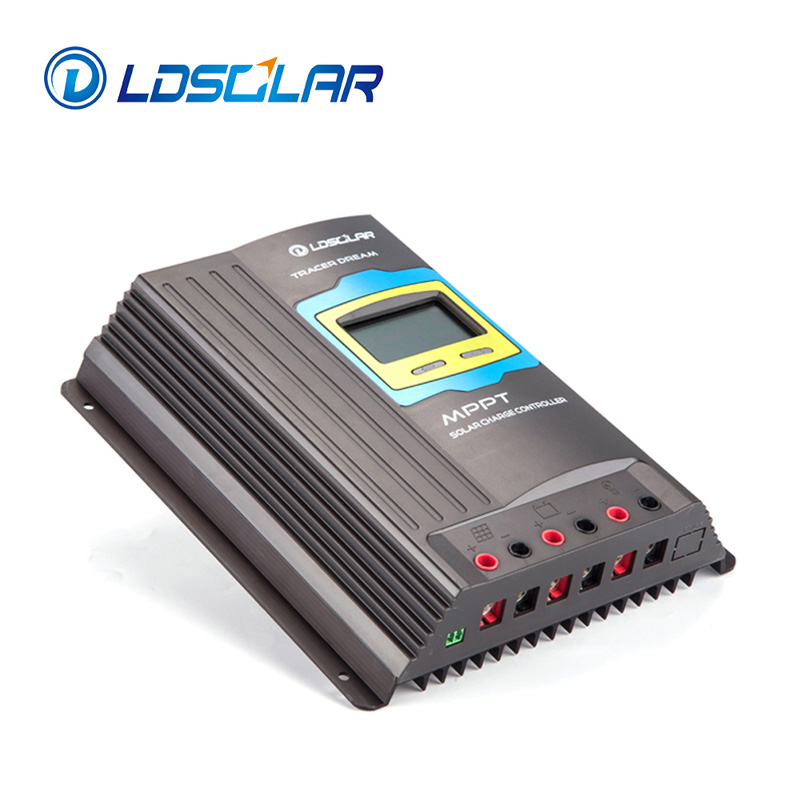

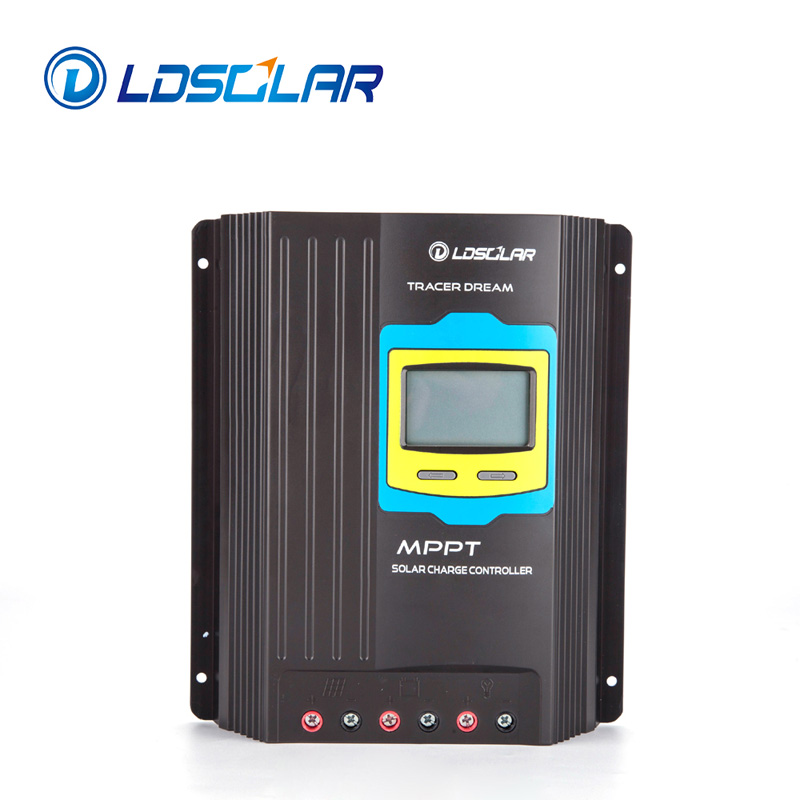

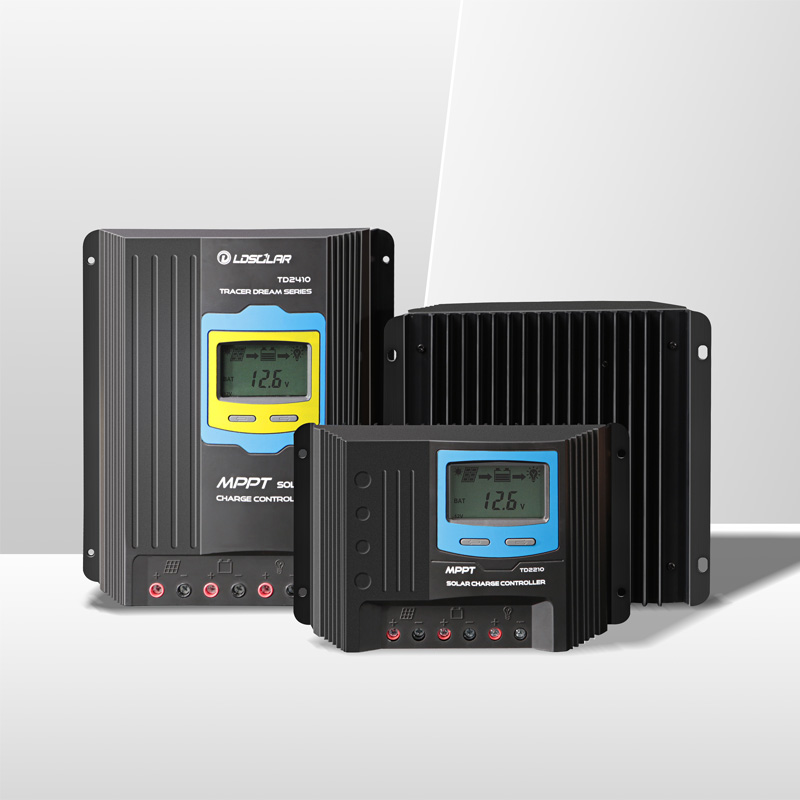

TD120V TU Series（30A 40A）MPPT Solar Controller
Tracer Dream 120V TU Series adopts MPPT technology. Max.120v solar input,12V/24V auto work.it's also ran by 32 bits CPU,so stabili.ty and speed can be guaranteed.It adopted by common negative designand it can start from solar,Widely used in Rv, ship and so on.
Product Information
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Details
|
01 |
02 | 03 | ||
|
External communication module optional |

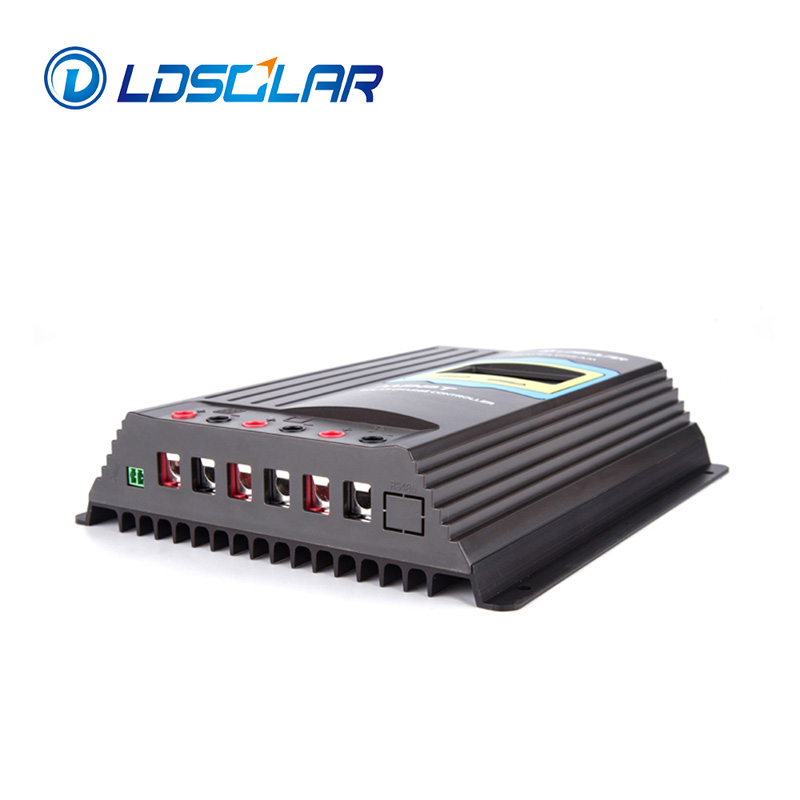

Distinctive heat dissipation character | Large-diameter red and black terminals | ||

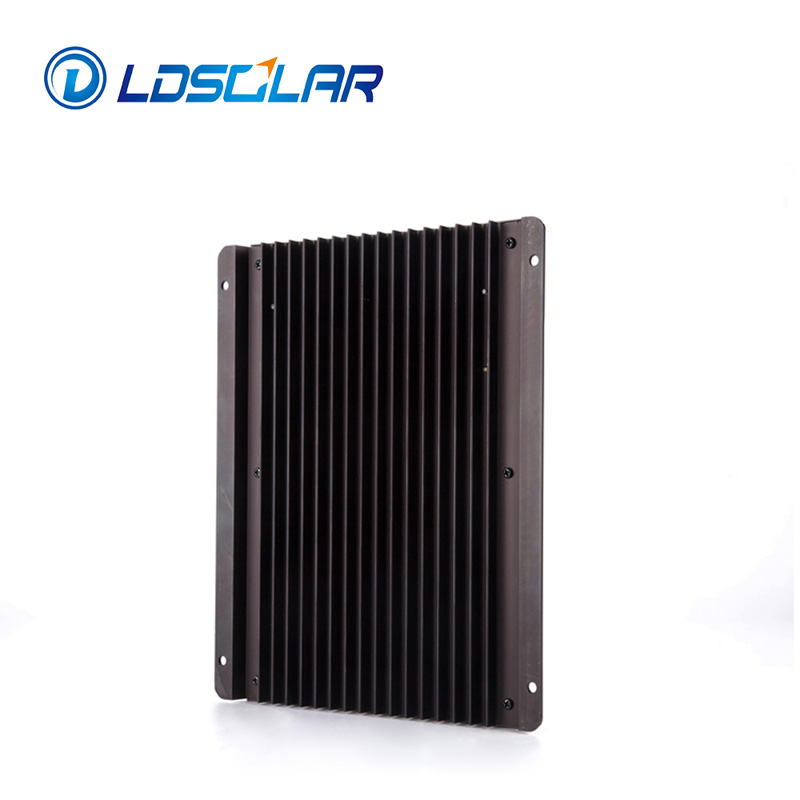

| The TD120V TU series can be equipped with an external WiFi/Bluetooth module, which can be connected to a mobile app for remote monitoring of real-time data | The back MOS tubes are evenly distributed.While ensuring a stylish and simple appearance,the heat dissipationis further improved. | The red and black design allows customers to distinguish positive and negative more intuitively, and good customer experience。 |
Product Highlights
|
|
|
 |
 |
|
| MPPT | Max.120V Solar Input | 12V/24V | Efficiency up to 98% | Max.25mm² |
 |
 |
 |
 |
 |
| Multiple load work modes | Charging and Discharging | Air cooling | Start from Solar | Support Lithuium Battery |
 |
 |
 |
 |
 |
| External Bluetooth (optional) | External WiFi(optional) | USB | Adjustable parameters | 16 Safety Protections |
Product Parameters
| Item | TD2312 TU | TD2412 TU |
|---|---|---|
| System nominal voltage | 12/24VDC Auto ① | |
| Rated charge current | 30A | 40A |
| Rated discharge current | 30A | 40A |
| Battery voltage range | 8～32V | |
| Max. PV open circuit voltage | ② 120V ③ 110V | |
| MPPT voltage range | (Battery voltage +2V)～ 75V | |
| Rated charge power | 390W/12V 780W/24V |
520W/12V 1040W/24V |
| Max. charge power | 580W/12V 1170W/24V |
780W/12V 1560W/24V |
| Self-consumption | ≤35mA(12V) ≤21mA(24V) | |
| Discharge circuit voltage drop | ≤0.12V | |
| LVD | 11.0V ADJ 9V….12V；×2/24V；×4/48V | |
| LVR | 12.6V ADJ 11V….13.5V；×2/24V；×4/48V | |
| Float voltage | 13.8V ADJ 13V….15V；×2/24V；×4/48V | |
| Boost voltage | 14.4V ADJ14V….17V； ×2/24； Battery Voltage less than Boost Restart Voltage Start Boost changing for 2hours |
|
| Battery Type | Sealed(Default)/Gel/Flooded/LiFePO4/ Li(NiCoMn)O2/ User | |
| Grounding | Common negative | |
| USB Port | USB 5V1A | / |
| Communication port | RJ45⑤ | |
| Temperature compensate Coefficient ④ | -4mv/℃/2V | |
| Working environment temperature◆ | -20℃～+50℃(100% 输入输出) | |
| Storage temperature range | -20℃～+70℃ | |
| Relative humidity | ≤95%, N.C. | |
| Enclosure | IP32 | |
- ①When a lithium battery is used, the system voltage can’t be identified automatically.
- ②At minimum operating environment temperature
- ③At 25℃ environment temperature
- ④When a lithium battery is used, the temperature compensate coefficient will be 0.
- ⑤The built-in Bluetooth / WiFi module and RJ45 interface cannot be used at the same time
- ◆The controller can work under full load in the working environment temperature, When the internal temperature is more than 80℃, the reducing power charging mode is turned on.
Product Connection
*Please be sure to follow the wiring instructions as incorrect wiring may damage the controller.
