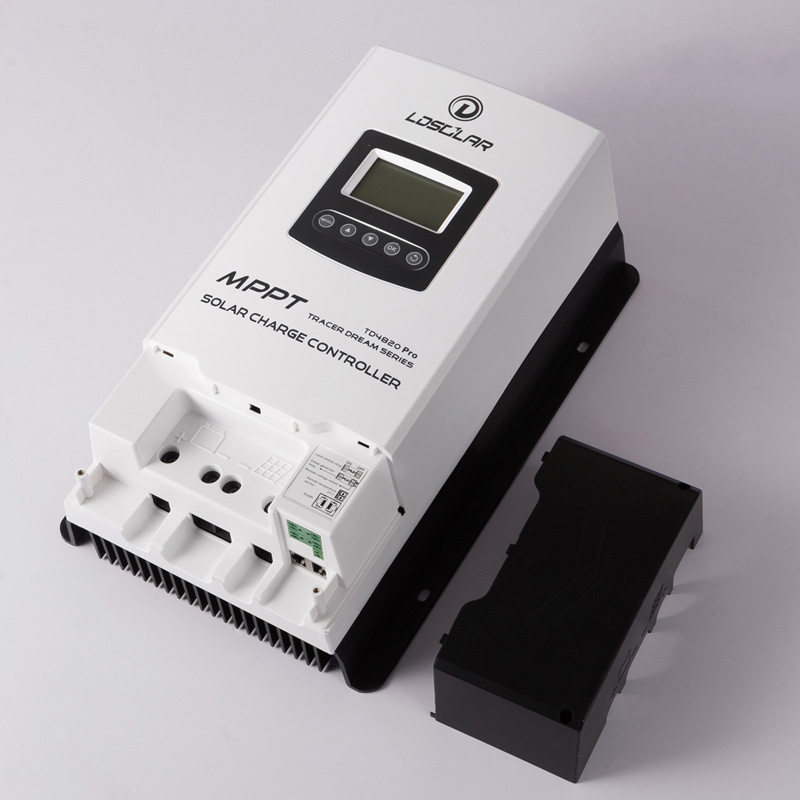

TD200V Pro Series（80A 100A）MPPT Solar Controller
Tracer Dream 200V Series controller is based on Based on Multi phase synchronous rectification technology and advanced MPPTcontrol algorithm, adopt co-negative design, with LCD displaying running status. The MPPT control algorithm can minimize themaximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximuenergy from solar modules under any conditions.
Product Information
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Details
|
01 |
02 | 03 | ||

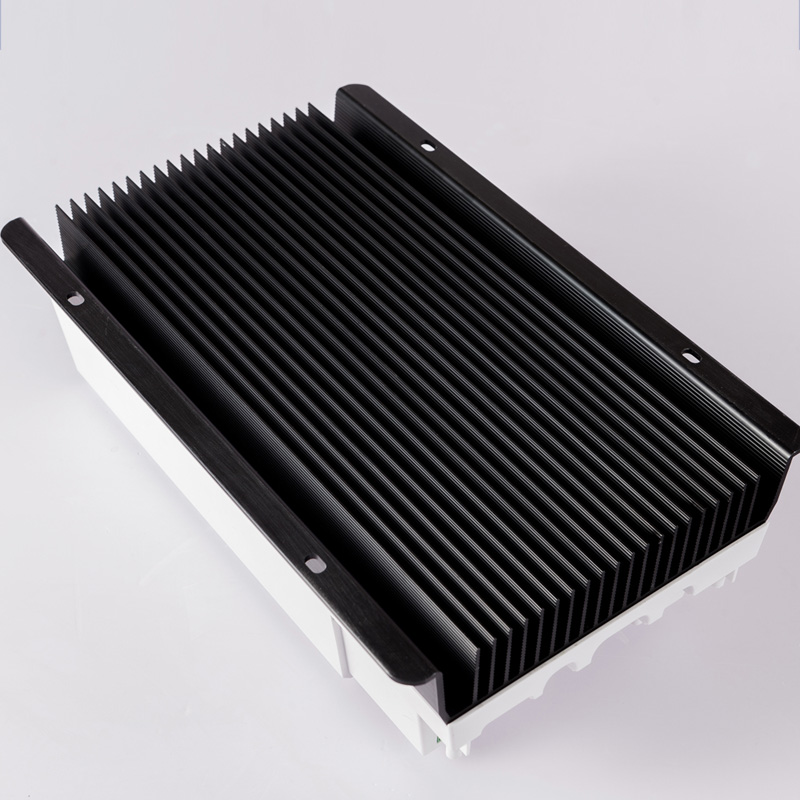

| Dry Contact | Distinctive heat dissipation character | Large-diameter red and black terminals | ||
| The dry contact can control other devices to connect or disconnect also can control the diesel generator to start. | The back MOS tubes are evenly distributed.While ensuring a stylish and simple appearance,the heat dissipationis further improved. | The red and black design allows customers to distinguish positive and negative more intuitively, and good customer experience |
Product Highlights
|
|
|
 |
 |
 |
| MPPT |
Max.200V Solar Input |
12V/24V/48V Auto | Efficiency up to 98% | Max.35mm² |
 |
 |
 |
 |
 |
|
Multi Phase Synchronous Rectification Technology |
Charging | Air cooling | Start from Solar | Support Lithuium Battery |
 |
 |
 |
 |
 |

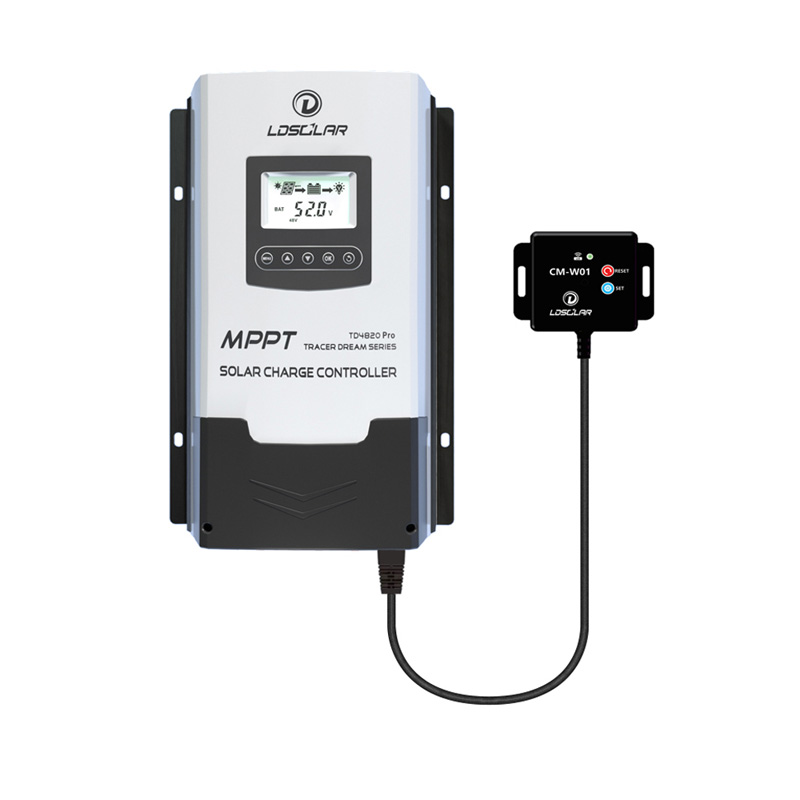

| External Bluetooth(optional) | External | Common Negative | Adjustable parameters | 14 Safety Protections |
Product Parameters
| Item | TD4820Pro | TD41020Pro |
|---|---|---|
| System nominal voltage | 12/24/48VDC Auto ① | |
| Rated charge current | 80A | 100A |
| Battery voltage range | 8～68V | |
| Max. PV open circuit voltage | ② 200V ③ 180V | |
| MPP voltage range | (Battery voltage +3V)～ 144V | |
| Rated charge power | 1000W/12V 2100W/24V 4200W/48V |
1300W/12V 2600W/24V 5200W/48V |
| Self-consumption | ≤70mA(12V)/40mA(24V)/24mA(48V) | |
| LVD | 11.0V ADJ 9V….12V；×2/24V；×4/48V | |
| LVR | 12.6V ADJ 11V….13.5V；×2/24V；×4/48V | |
| Float voltage | 13.8V ADJ 13V….15V；×2/24V；×4/48V | |
| Boost voltage | 14.4V ADJ 108V….120V；×2/24；×4/48V Battery Voltage less than 12.6V Start Boost changing for 2hours(Li-battery not) |
|
| MPPT tracking efficiency | ≥99.5% | |
| Max. Conversion efficiency | 0.98 | |
| Grounding | Common negative | |
| Battery Type | Sealed(Default)/Gel/Flooded/LiFePO4/ Li(NiCoMn)O2/ User | |
| Temperature compensate Coefficient ④ | -4mv/℃/2V | |
| Dry contact | Rated value: 3A/30VDC; Max. value: 0.5A/60VDC | |
| Communication method | RS485(5VDC/200mA） | |
| LCD backlight time | Default: 15S | |
| Working environment temperature◆ | -20℃～+50℃(100% input and output) | |
| Storage temperature range | -20℃～+70℃ | |
| Relative humidity | ≤95%, N.C. | |
| Enclosure | IP32 | |
- ①When a lithium battery is used, the system voltage can’t be identified automatically.
- ②At minimum operating environment temperature
- ③At 25℃ environment temperature
- ④When a lithium battery is used, the temperature compensate coefficient will be 0.
- ◆The controller can work under full load in the working environment temperature, When the internal temperature is more than 80℃, the reducing power charging mode is turned on.
Product Connection
*Please be sure to follow the wiring instructions as incorrect wiring may damage the controller.
