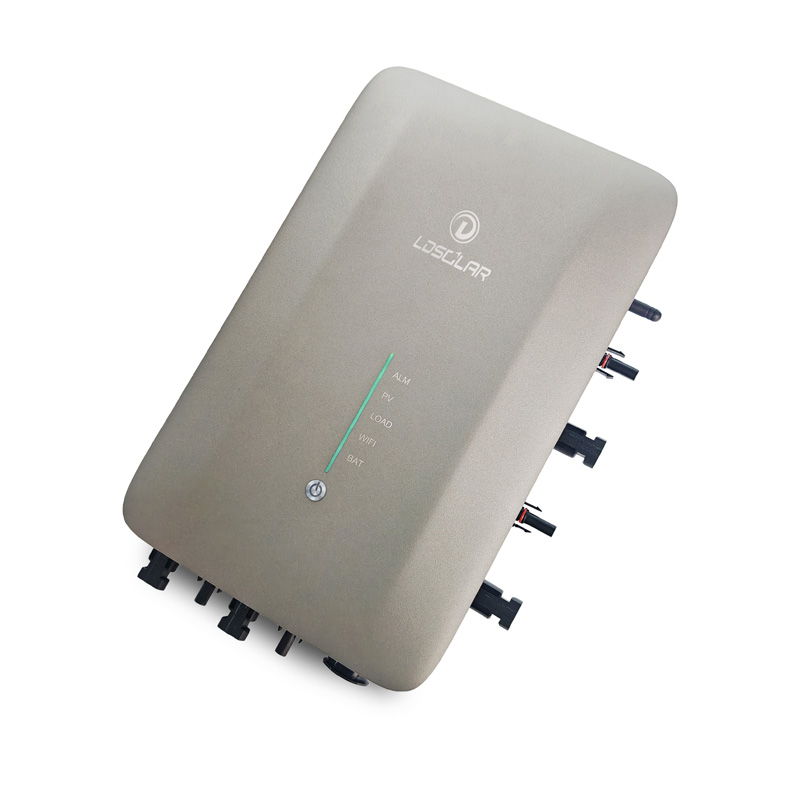

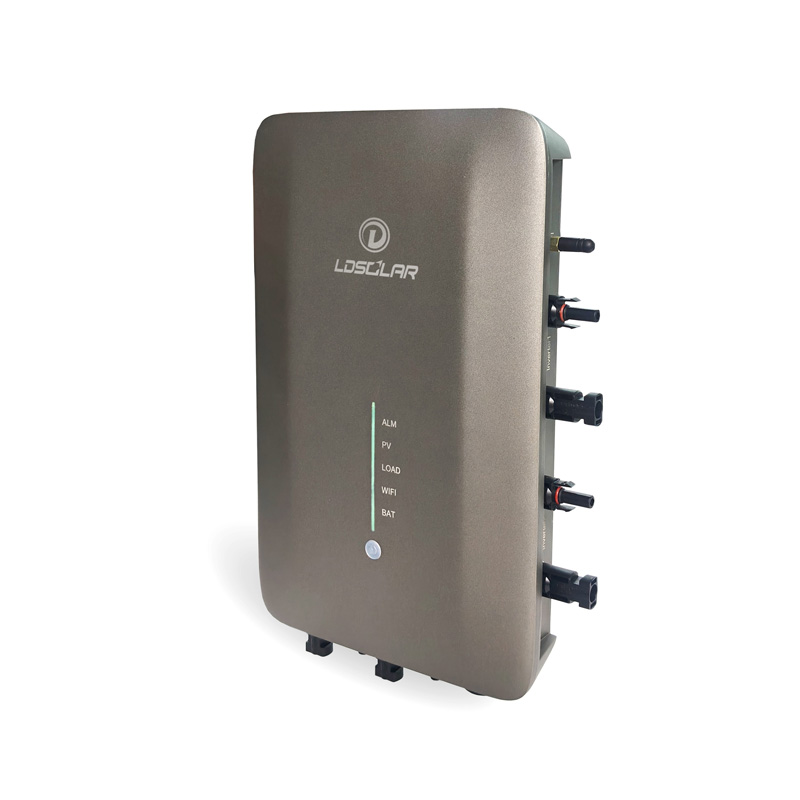

ED-PH Series（12V-60V/1600W）Balcony Controller
The ED-PH series balcony photovoltaic power generation system is a small solar power generation device, usually installed on residential balconies, windowsills, courtyards, or small outdoor spaces, providing green electricity for households. Enable photovoltaic energy to be effectively consumed by household loads, store excess energy properly, eliminate external power feeding, and achieve zero reverse current feeding.
Product Information
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Details
|
01 |
02 | 03 | ||
| Easy Installation | Distinctive heat dissipation character | MC4 interface | ||

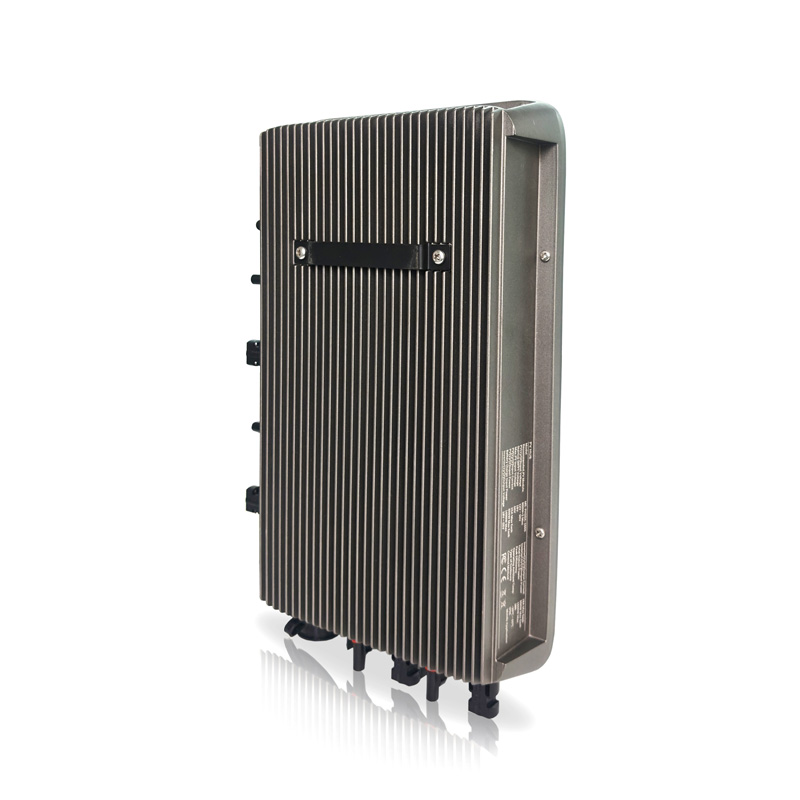

| Bow-shaped bar bracket, the whole machine can be directly hung on the bracket | The back MOS tubes are evenly distributed.While ensuring a stylish and simple appearance,the heat dissipationis further improved. | Using standardized MC4 connectors to achieve plug and play operation. |
Product Highlights
|
|
 |
 |
 |
| MPPT voltage regulation | Can simulate PV output | IP65 waterproof rating | Smart APP Monitoring |
 |
 |
 |
 |
|
Compatible with various brands of micro inverters |
Multiple security protections |
Intelligent management of charging and discharging logic |
Efficiency up to 98% |
Product Parameters
| Model | ED-PH48-1600 |
|---|---|
| Suggested PV Panel Power | 800W x 2 |
| PV Input Voltage Range | 12V-60V |
| PV Input Current | 25A x 2 |
| PV Input Power | 800W x 2 |
| Battery-charging Power | 1600W |
| Inverter Output Voltage Range | 18V-55V |
| Inverter Output Current | 28A x 2 |
| Inverter Output Power | 1600W |
| MPPT Starting Voltage | 18V |
| MPPT Tracking Efficiency | 99.5% |
| Peak Efficiency | 98% |
| Operating Ambient Temperature | -20℃～65℃ |
| Protection Level | IP65 |
| Communication | RS485/CAN/WiFi |
| Dimensions | 340×213×67mm |
| Weight | ≈3.2kg |
Product Connection
*Please be sure to follow the wiring instructions as incorrect wiring may damage the controller.
