CM-W01（WiFi module）
CM series is a communication module for our company’s solar charge controller to extend wireless communication function. Cooperating with Mobile phone APP, It can carry out wireless monitoring, parameter settings and data viewing
of solar system.
of solar system.

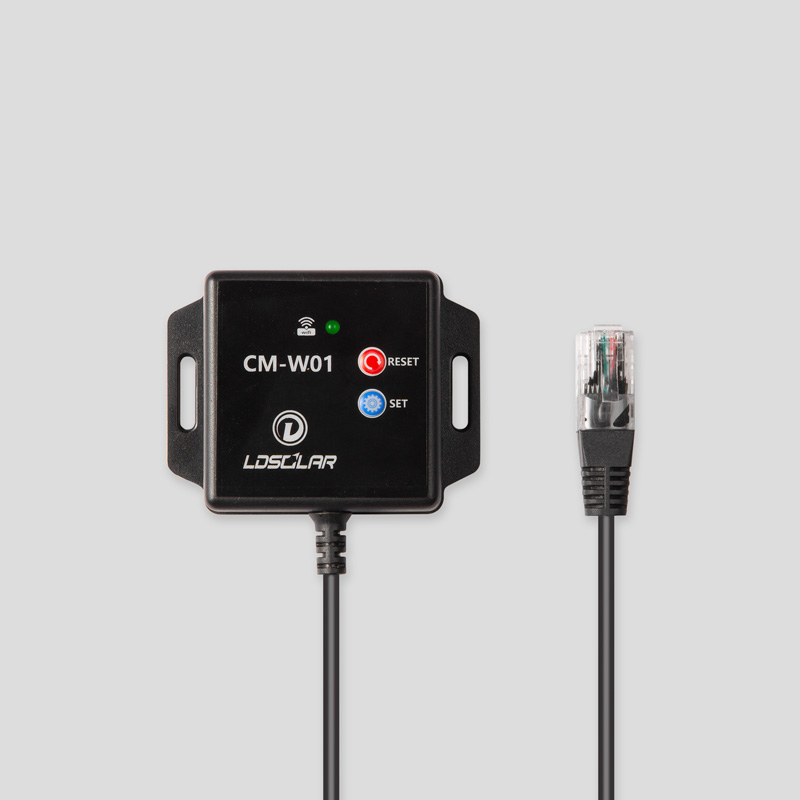

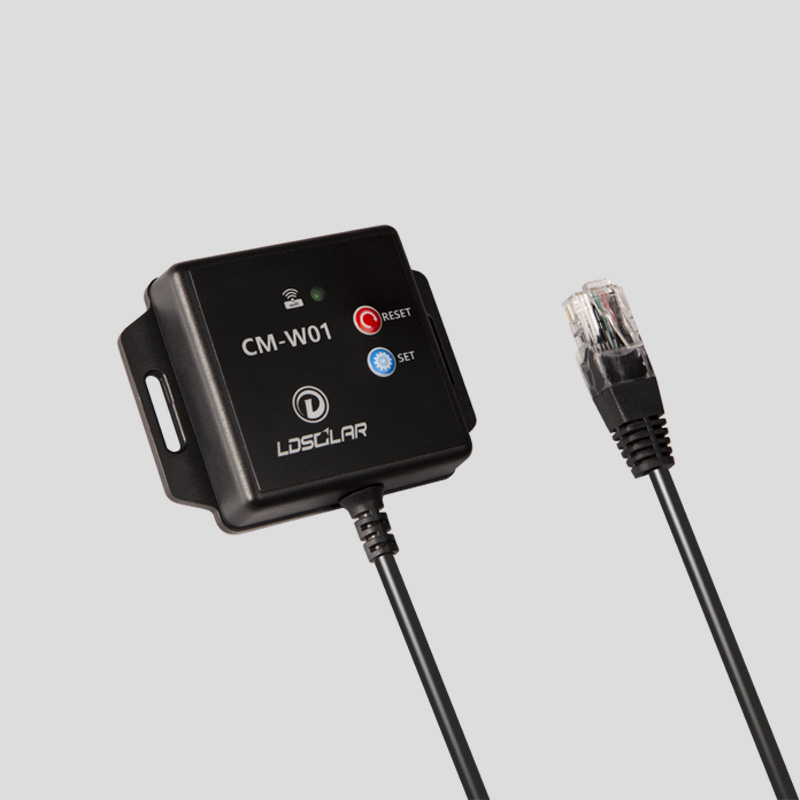

Product Details
 |
|
|
| 1、Communication Connection Indicator | ||
| 2、Mounting hole | ||
| 3、Reset | ||
| 4、Set | ||
| 5、Communication line | ||
| 6、RJ45 interface | ||
Product Parameters
|
Models
|
CM-W01
|
|---|---|
|
Input voltage
|
5VDC（direct powered by RS485port）
|
|
Standby power consumption
|
0.1W
|
|
Operation power consumption
|
0.25W
|
|
Communication distance
|
≤50m
|
|
Port baud rate
|
Fixed baud rate 115200bps
|
|
Communication
|
RS485 to WIFI
|
|
Interface type
|
RJ45
|
|
Connecting cable
|
1m custom parallel cable
|
|
Size
|
66*51*15.5mm
|
|
Mounting dimension
|
57.8*12mm
|
|
Mounting hole
|
φ3.5
|
|
Working temperature
|
-20℃-75℃
|
|
Waterproof grade
|
IP30
|
|
Net weight
|
45g
|
